AEGIS Gas Assist Injectors

Special Offers - Excess Inventory

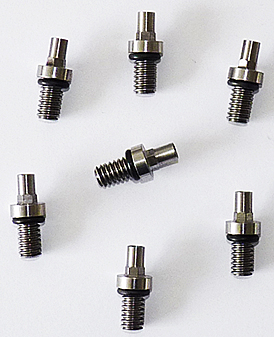

AP1-312-15TS Gas Injectors

gas pins - AP1-312-15TS



Update October 2, 2012: Only (1) left - $260.00

Call 757-271-9927 to order.

The AP1-312-15TS gas injectors were the predecessor to AEGIS' industry standard A3SC312TS self cleaning injectors.  Flow and venting is exceptional, and the bore required in the mold is the same as the A3SC312TS at .375" deep x .180" with 1/4-20 threads.  See our installation page for details.  Total available excess inventory are 7 injectors available at the prices shown below.  Manufactured in O1 tool steel and include (5) O-rings per injector (4 spares per injector).  Minimum of (5) injectors are available at the highly discounted prices shown:





(5) AP1-312-15HS Gas Injectors

at $290.00 each ($1,325.00 lot) includes UPS Ground shipping





(7) AP1-312-15HS Gas Injectors

at $260.00 each ($1,715.00 lot) includes UPS Ground shipping

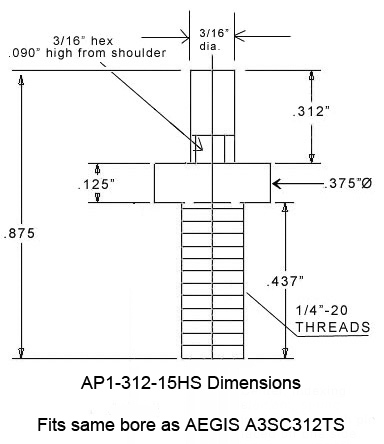

AP1-312-15TS Injector Dimensions

gas piuns - AP1-312-15TS
